ニュー・エラの鋼鉄管の保有物
ニンポーPIPEWAY貿易CO.、株式会社
| 起源の場所: | 中国 |
|---|---|
| ブランド名: | Pipeway |
| 証明: | ISO9001,TS16949 |
| モデル番号: | DIN2391 / EN10305-1/EN10305-4 / GB3639 / ASTM A519 |
| 最小注文数量: | 1トン |
| 価格: | 交渉可能 |
| パッケージの詳細: | バンドルパッケージ、木箱パッケージ |
| 受渡し時間: | 45日 |
| 支払条件: | T/T |
| 供給の能力: | 3000トン/月 |
| 材料: | St35、St45、St52、E235、E255、E355 | 配送条件: | BK、BKW、BKS、GBK、NBK |
|---|---|---|---|
| ODサイズ: | 6-88mm | WTサイズ: | 1～15mm |
| 表面: | クリーンで酸化スケールフリー | 応用: | 自動車部品は配管する |
| アドバンテージ: | 高精度 | キーワード: | 冷間引抜 |
| 納期: | 45日 | ||
| ハイライト: | cold drawn seamless steel pipes,seamless steel tubes for construction,high precision cold drawn tubing |
||

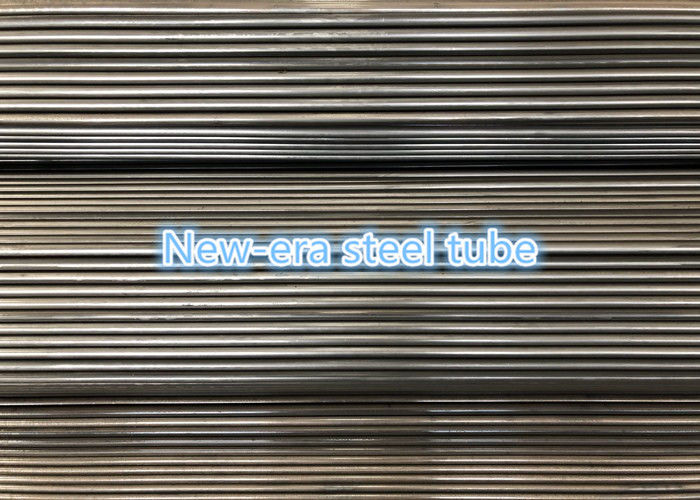

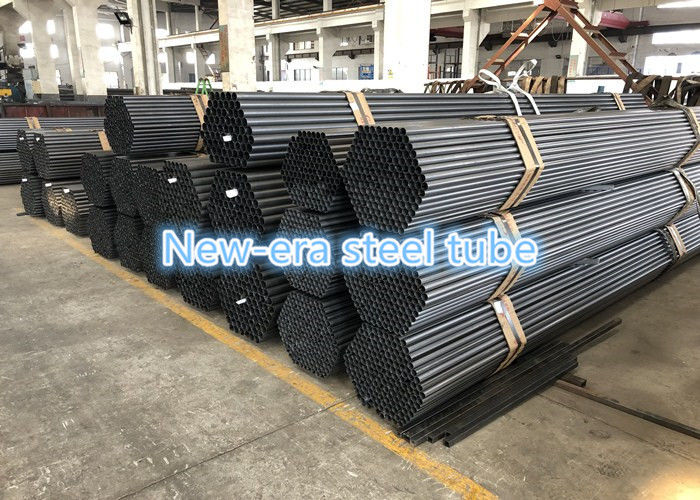

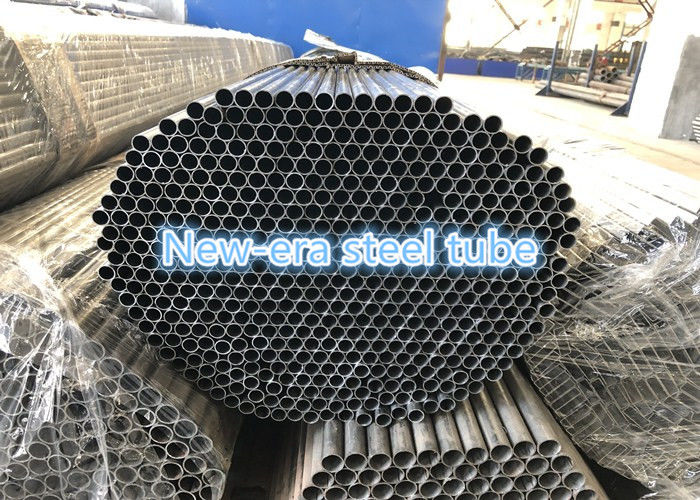

Product Name: Cold Drawing Seamless steel pipes
Material: ST35, ST45, ST52, E235, E355, E255, 4130, 1020, 1010, 1045, STKM11A, STKM13C, etc
Size Range: OD: 6-88mm, WT: 1-15mm, Length: 5.8m/6m, maximal 11.8m
Delivery Condition: BK, BKW, BKS, GBK, NBK
Application: For high precision purpose, auto industry, like manipulator, Shock Absorber, Transmission Shaft, Steering Gear, Car Frame, etc.
Stable Quality with Comeptitive Price.
NBK(Bright Annealing) Heat Treatment, Surface is clean and smooth, without oxide scale
Good Extending and Bending Ability.
Quality Control:
1. Incoming Raw Material Inspection
2. Raw Material Segregation to avoid steel grade mix-up
3. Heating and Hammering End for Cold Drawing
4. Cold Drawing or Cold Rolling, On line inspection
5. Heat Treatment:BKS, GBK, NBK
6. Straightening/Cutting to specified length/Finished Measuring Inspection
7. Quality Testing in own lab with Tensile Strength, Yield Strength, Elongation, Hardness, Straightness, etc.
8. Packing and Stocking.
100% Eddy Current Testing.
100% Size Tolerance Checking.
100% Tube surface checking to avoid surface defects.
| Product Name | Seamless Cold Drawn Precision Steel Tube |
| Material | ST35, St45, ST52 |
| Delivery Condition | BK, BKW, BKS, GBK, NBK |
| Standard | DIN2391 |
| Size Range | OD: 6-88mm, WT: 1-15mm |
| Application | High precision purpose, auto parts, oil cylinder, etc |
| Round Billet | Bao Steel, Xingcheng Steel, Huai Steel, Zhongtian Steel |
| Keyword | Cold Drawn Steel Tube |
| Certificate | TS16949, ISO 9001 |
| HS code | 7304319000 |
| Delivery Time | 45 days |
| Packing | Bundles or Wooden Boxes |
| Steel Grade | Chemical Composition | |||||
| Symbol | Material Number |
C Max. |
Si Max. |
Mn |
P Max. |
S Max. |
| ST35 | 1.0308 | 0.17 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST45 | 1.0408 | 0.21 | 0.35 | ≥0.40 | 0.025 | 0.025 |
| ST52 | 1.0580 | 0.22 | 0.55 | ≤1.60 | 0.025 | 0.025 |
| Steel Grade | BK | BKW | BKS | |||||
| Name | No. |
Rm Mpa |
A % |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 480 | 6 | 420 | 10 | 420 | 315 | 14 |
| ST45 | 1.0408 | 580 | 5 | 520 | 8 | 520 | 375 | 12 |
| ST52 | 1.0580 | 640 | 4 | 580 | 7 | 580 | 450 | 10 |
| Steel Grade | GBK | NBK | ||||
| Name | No. |
Rm Mpa |
A % |
Rm Mpa |
ReH Mpa |
A % |
| ST35 | 1.0308 | 315 | 25 | 340--470 | 235 | 25 |
| ST45 | 1.0408 | 390 | 21 | 440--570 | 255 | 21 |
| ST52 | 1.0580 | 450 | 22 | 490--630 | 355 | 22 |
